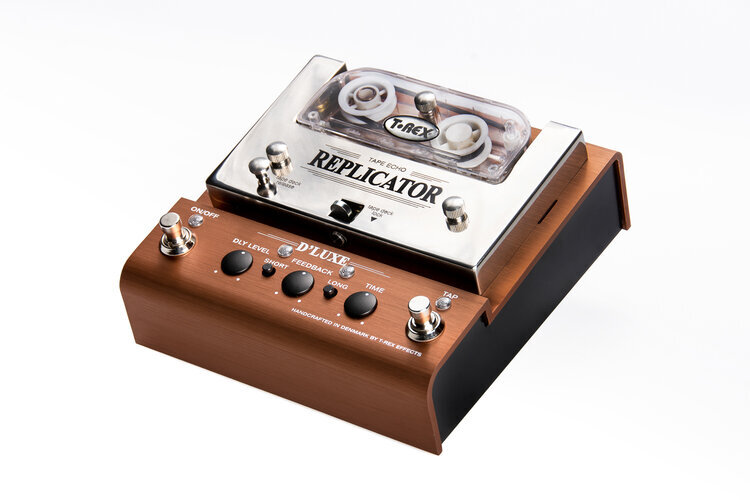

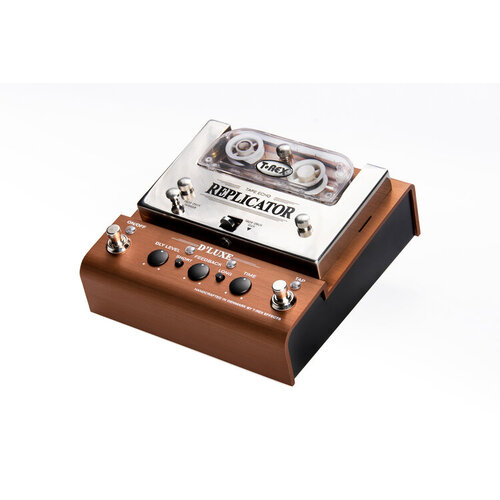

The Replicator D’Luxe is a sum up from all the knowledge, we have built up over the years, making Tape delays.
It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.
Multiple Playback-heads for true analog tape echoes
One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
Tap tempo for Long Head and half the time for the short head
True Bypass switching with a gold plated relay
New motor suspension with belt drive, for reduced noise operation
New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
All analog signal path from input to output
|Input impedance @ 1KHz||> 500K ohm|
|Output impedance @ 1KHz||>1K ohm|
|Power supply (included)||12V DC, center negative|
|Current draw @ 12V DC||300mA|
|Maximum input signal V p-p||8,7V p-p (12dBu)|

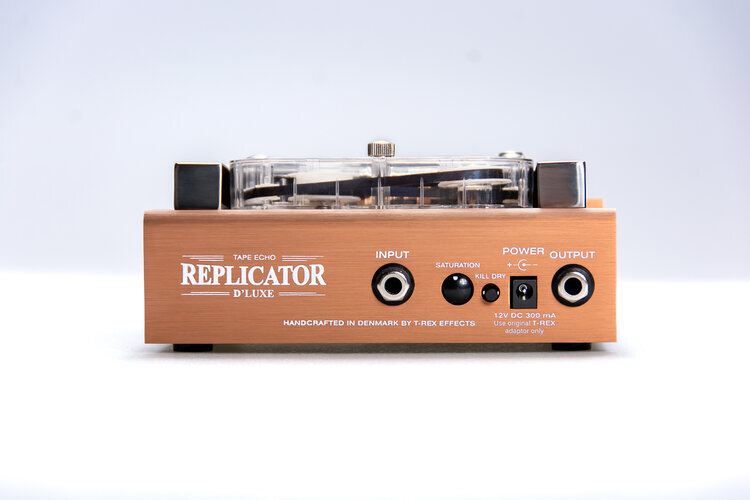

|External connectors||input, output, DC inlet|
|Controls||delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo|
|Pedal size incl. knobs (W x H x D)||80 x 174 x 175 mm / 3,15 x 6,85 x 6,89 in|
