Focusing solely on Patrick James Eggle’s historic acoustic body shapes, our new PJE Legacy Series guitars set a new bar for professional excellence.
The Sitka Spruce tops of these guitars have been kiln-aged through a process of torrefaction or torrefication. The Spruce is air dried before being roasted in a kiln with precise controls over atmospheric and oxygen levels to reduce its moisture content. Then as the wood cools, precise amounts of moisture are re-introduced to the wood. The resulting timber is more stable – always good when used as a topwood - and aurally, it produces a rich, mellow tone with a mature voicing which would take perhaps 20 years of waiting to achieve under normal circumstances. Treating Spruce this way has its benefits on the way it looks too with it taking on a golden-caramel colouring that sees this series radiate an authentic, grown-up vibe.
They also feature solid high-figure, Flamed Maple bindings, Figured Ebony fingerboards and bridges, and bone nuts, saddles and bridge pins. Also for the first time in our history – each guitar has a solid Figured Ebony pickguard.

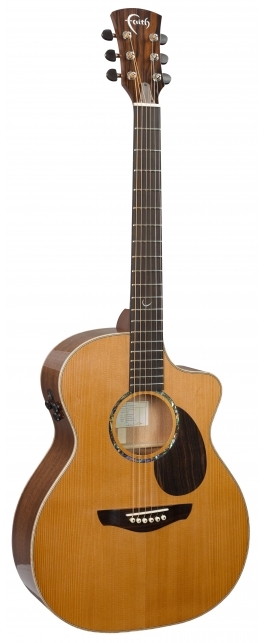

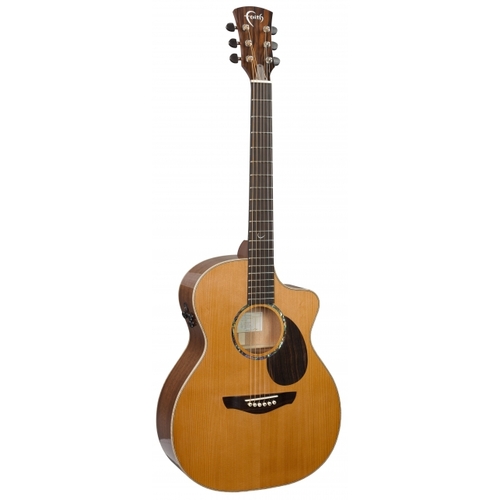

Based on Patrick James Eggle’s ‘Linville’ model, the Earth is a true Orchestra Model (OM) shape and is the newest addition to the Faith family. Although sharing many geometric characteristics with our highly acclaimed Venus shape, the Earth has its own set of distinguishing features that make for a unique tonal palette, plus it is truly unique, having been drawn by Patrick’s own hand.
In true OM fashion, its 15” lower bout is flattened at the base, and at 4.45” deep, its shallow body makes for a comfortable mid-sized guitar.
|Pickguard||Macassan Figured Ebony|
|Top Wood||Torrefied Canadian Sitka Spruce|
|Back Wood||African Khaya Mahogany|
|Side Wood||African Khaya Mahogany|
|Binding||Solid Flamed Maple|
|Bracing Material||Hand-Scalloped Quarter-Sawn Spruce|
|Bracing Pattern||Patrick James Eggle X-Brace Design|
|Rosette||5mm Abalone with Fibre Border|
|Neck Joint||Patrick James Eggle Bolt-On Design|
|Fingerboard||Macassan Figured Ebony|
|Fingerboard Inlays||Mother of Pearl 'F' at 12th Fret|
|Machine Head||Grover Rotomatic 18:1 Nickel|
|Nut / Saddle||Natural Bone|
|Nut Width||45mm / String Spacing 55mm|
|Bridge||Macassan Figured Ebony|
|Bridge Pins||Natural Bone|
|Finish Type||PU Lacquer High Gloss all-over|
|Preamp / Pickup||Fishman Flex Blend / Condenser Mic|
|Hardcase||Faith Premium Hardcase Included|
|Depth at neck||93mm|
|Depth at base||112mm|
|Fingerboard Radius||16 inch|
